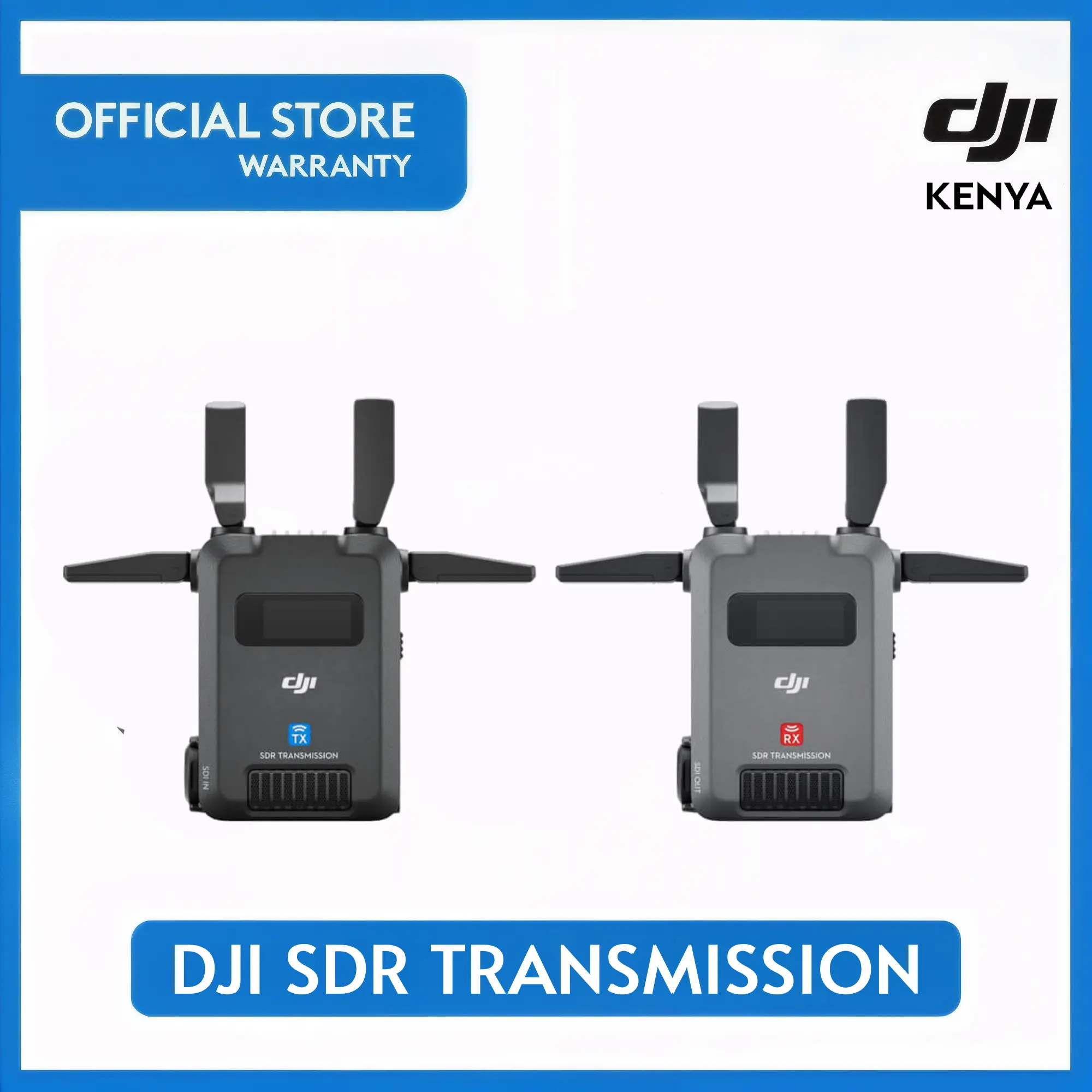

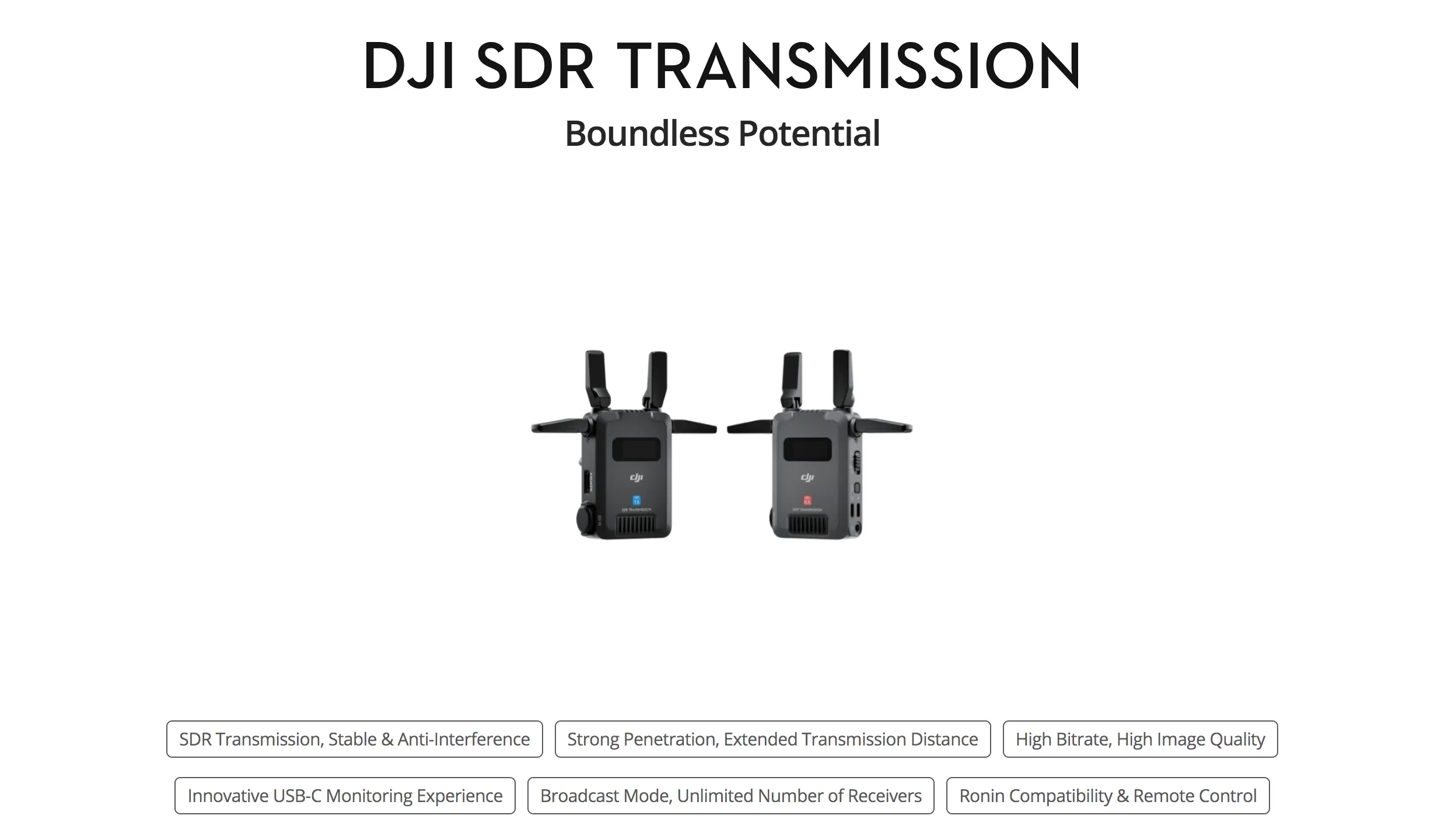

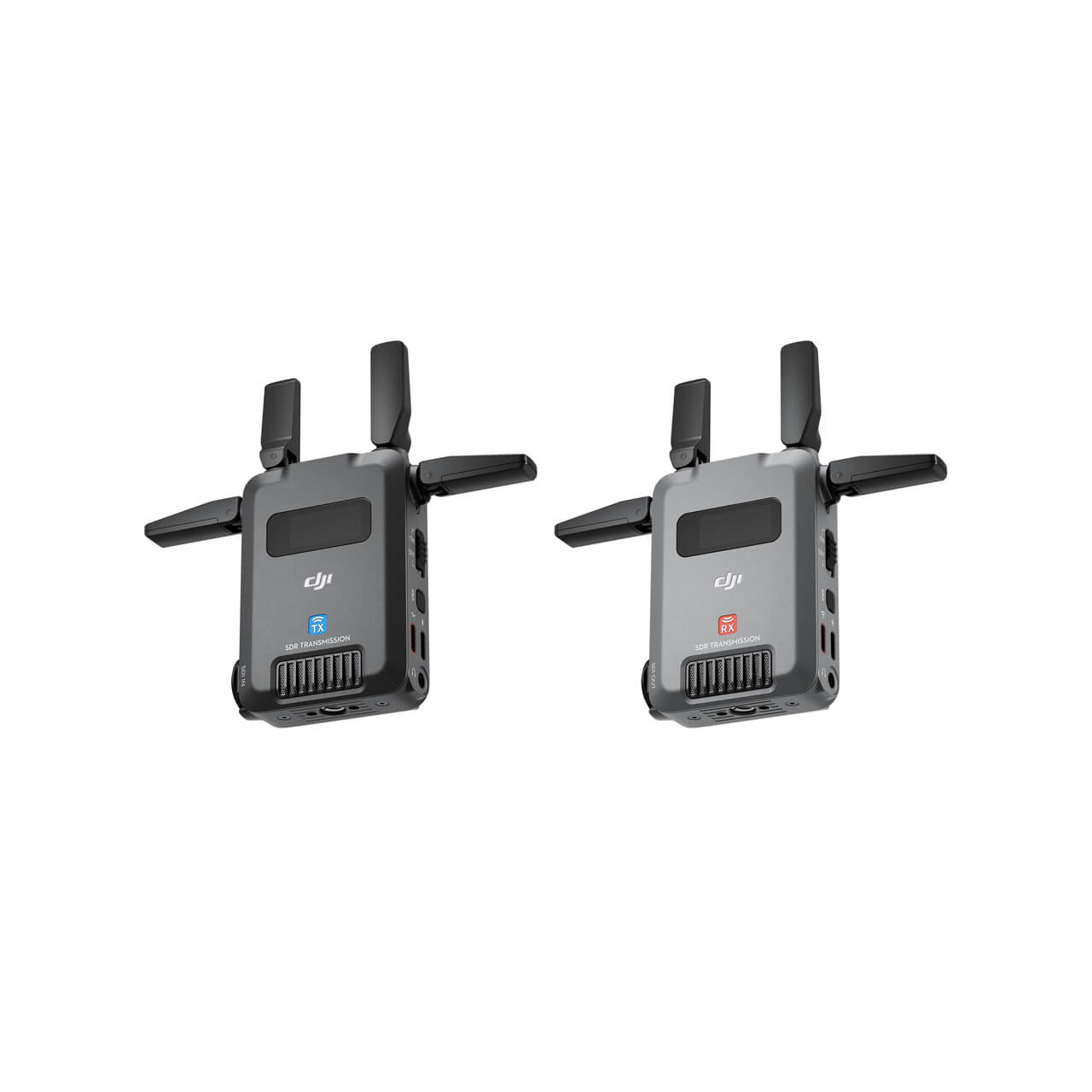

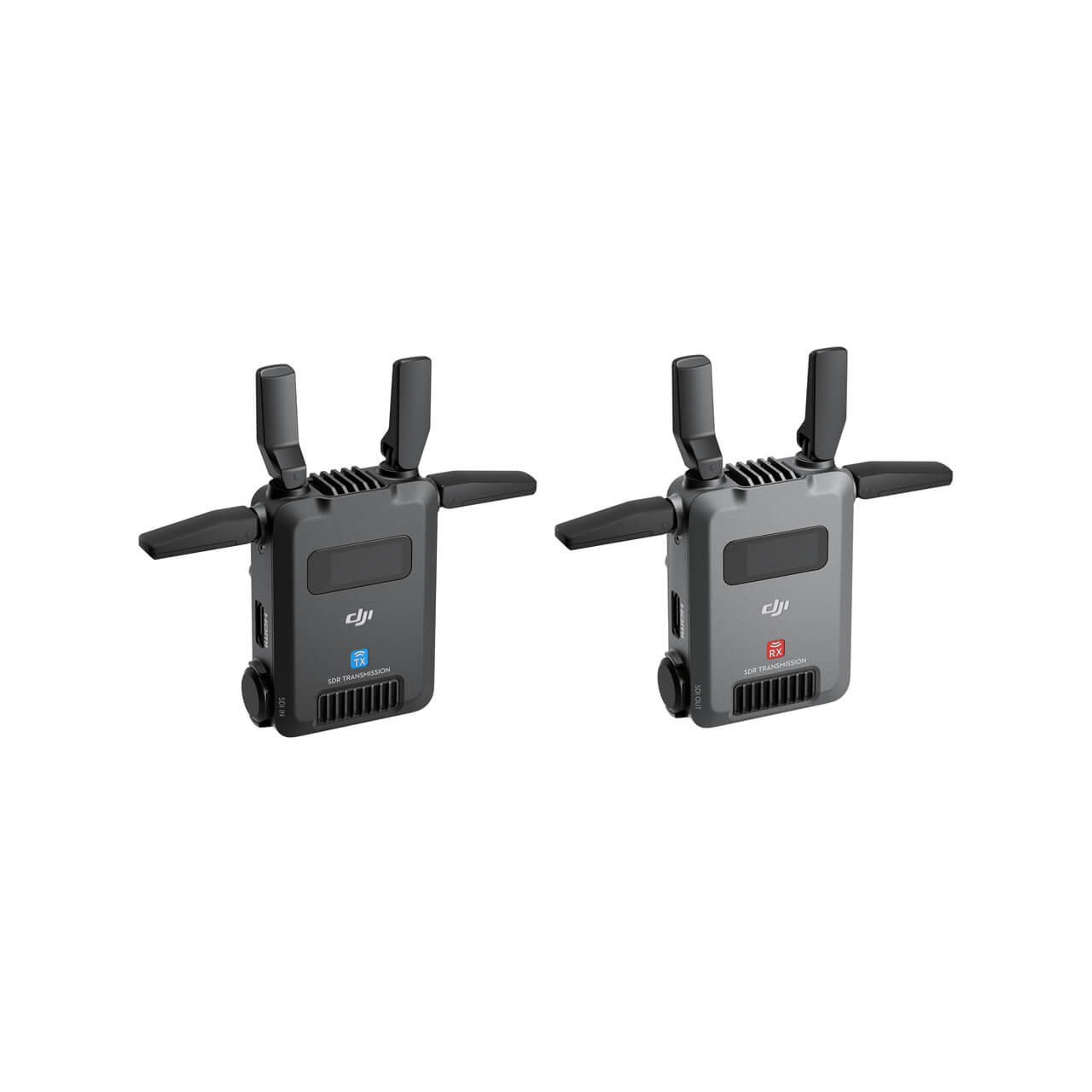

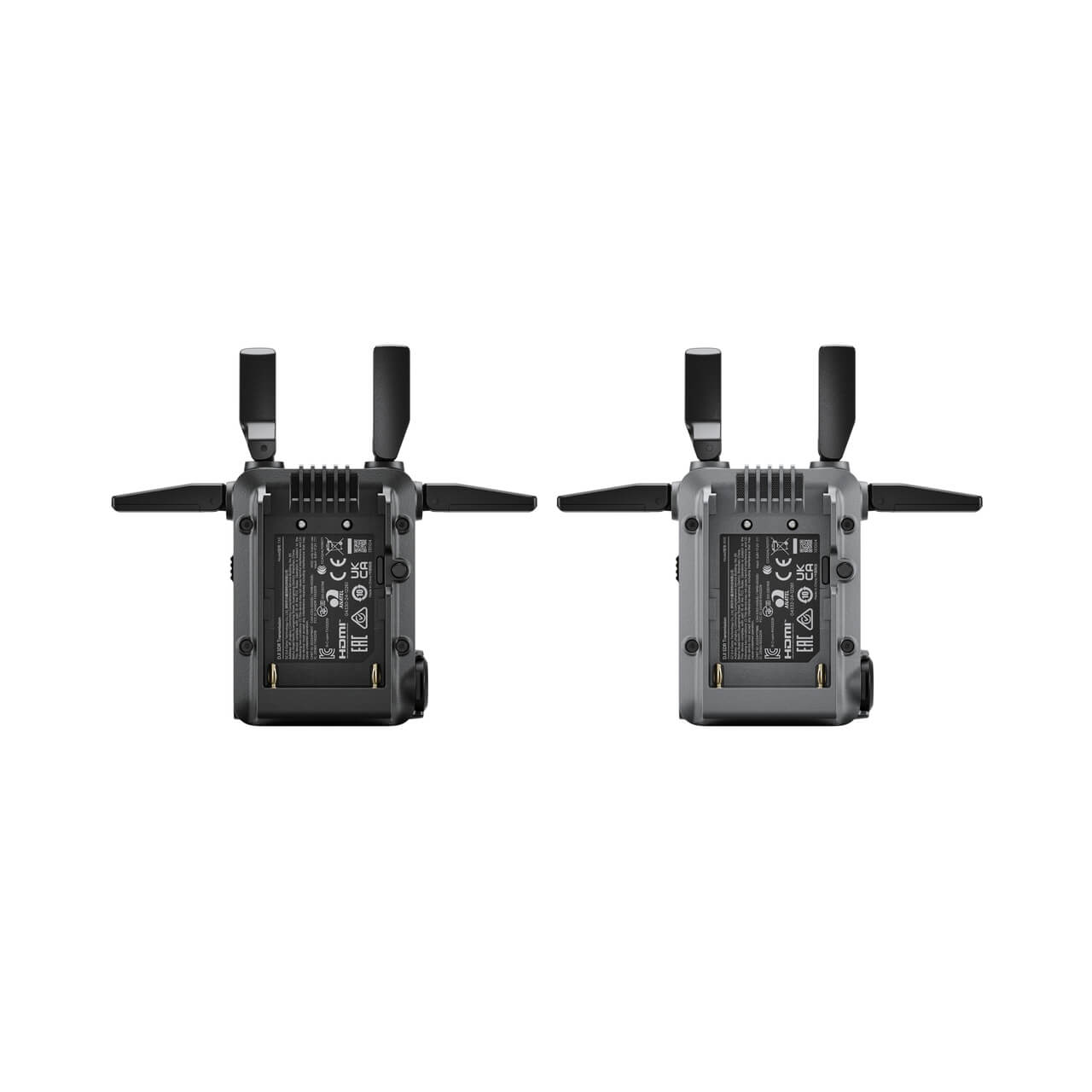

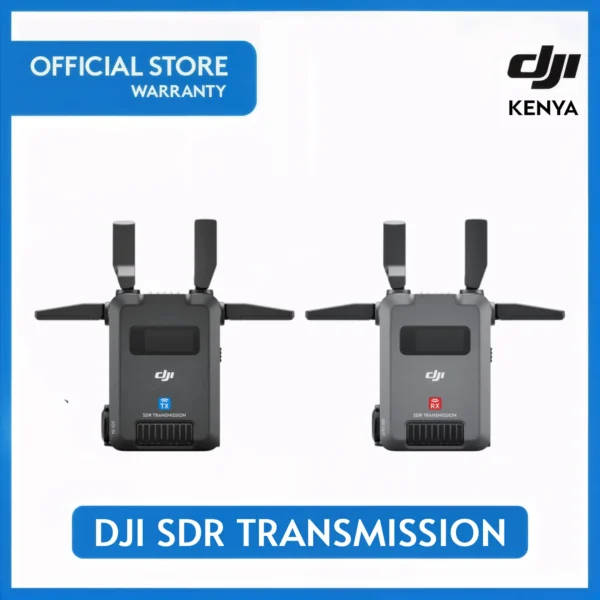

DJI SDR TRANSMISSION

DJI SDR TRANSMISSION

https://www.youtube.com/watch?v=Dv-jcbhwpE4

Stable and Anti-Interference

Built around Software-Defined Radio technology, DJI SDR Transmission utilizes both SDR and Wi-Fi video transmission modes. SDR technology takes video transmission performance to a whole new level, offering enhanced stability, interference resistance, and penetration capabilities. For instances that require temporary monitoring, DJI SDR Transmission also accommodates Wi-Fi transmission to provide teams with increased flexibility.

Transmission Distance

Increased by 650%

Transmission Bitrate

Increased by 67%

Transmission Latency

Improved by 30%

 Robust Penetration

The DJI SDR Transmission can reach up to 3 km/10,000 ft, accommodating wide-area, dynamic filming scenarios. Coupled with superior penetration capabilities, it meets on-site live feed monitoring demands in various complex scenarios.

20Mbps High Bitrate,

1080p FHD Image Quality

The DJI SDR Transmission supports 1080p/60fps live feeds, with a high bitrate of up to 20 Mbps, ensuring smooth monitoring and collaboration.

Seamless Auto Frequency Hopping

The DJI SDR Transmission supports seamless auto frequency hopping across 2.4 GHz, 5.8 GHz, and DFS frequency bands. In case of interference, it can automatically switch to the optimal channel, effortlessly tackling complex environmental challenges.

Unlimited Number of Receivers

In Broadcast mode, each transmitter can connect to an unlimited number of receivers, providing a high-quality monitoring experience for multiple collaborators and meeting the independent monitoring needs of various professional roles.

35 ms Low-Latency Transmission

The minimal latency of just 35 ms ensures smooth monitoring and efficient collaboration.

Metadata Transmission

Voice Call

The DJI SDR Transmission enables one-on-one real-time communication between the receiver and transmitter, allowing for seamless conversations between the cinematographer and the director or client at any time.

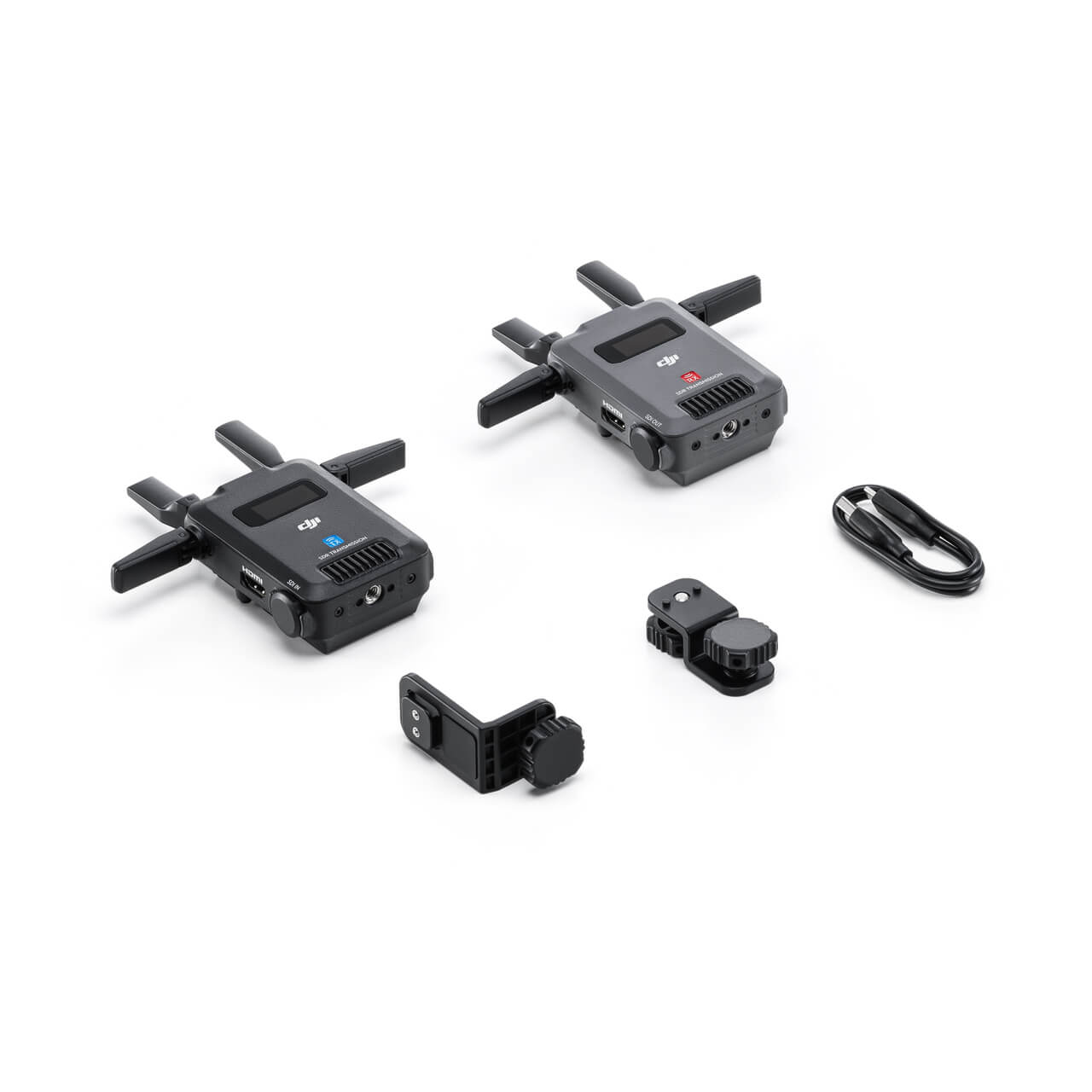

Compact, Lightweight, Portable

With a lightweight design and foldable antennas for easy storage, a single transmitter or receiver weighs approximately 145 g. This not only ensures portability but also supports various mounting methods, satisfying a wide range of on-scene demands.

Innovative USB-C Port,

Diverse Monitoring Methods

The DJI SDR Transmission supports multiple monitoring methods and can output three SDR signals and two Wi-Fi signals simultaneously. The receiver can output to monitors via SDI/HDMI. Additionally, the transmitter allows for direct connection to smartphones or tablets over Wi-Fi, offering a cost-effective, dual-channel monitoring experience without the need for a receiver.On top of this, DJI SDR Transmission also introduces a USB-C output monitoring method that combines stability with convenience. Users can use a USB-C cable to connect the receiver to a smartphone or tablet for smooth and stable monitoring.

Camera Sources Switching

When DJI SDR Transmission is connected to the DJI Ronin app in Broadcast mode, users can seamlessly switch between camera sources within the app, meeting the monitoring needs for different camera views.

Local Recording and Playback

The app supports local recording, and recorded content can be reviewed on the playback page.

Gimbal Power

Thanks to the integrated power supply design, when used with DJI RS 5, DJI RS 4 Pro, DJI RS 4, or DJI RS 3 Pro , the transmitter can be mounted on the gimbal and powered directly by it, eliminating the need for a separate battery.
